| Brand Name: | GT |
| Model Number: | B07 |
| MOQ: | 1-50 sets |
| Price: | 610-810 usd/set |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 3000/month |

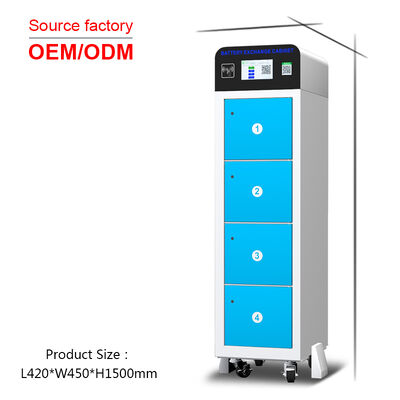

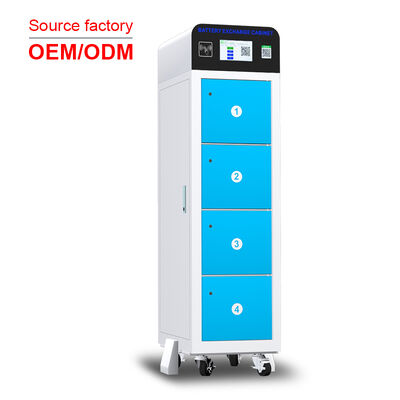

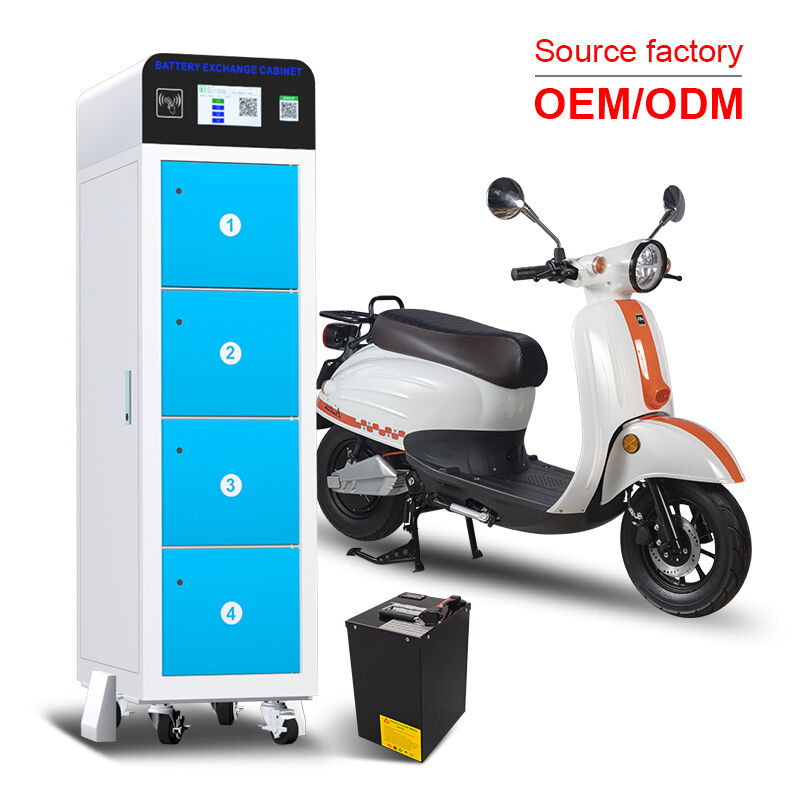

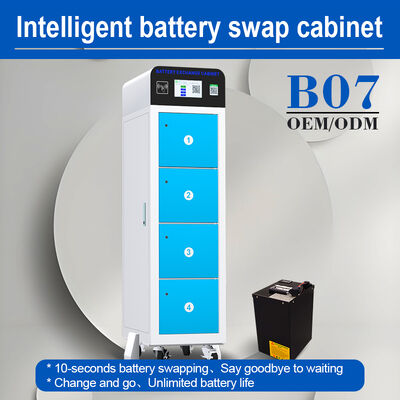

This power swap cabinet is a specialized system designed for electric low-speed vehicles including electric tricycles, motorcycles, and low-speed four-wheelers. The system enables users to quickly exchange depleted batteries for fully charged ones, eliminating lengthy charging wait times.
| Parameter | Value |
|---|---|
| Warehouse size | L252*W230*H420mm |
| Number of Charging Circuits | 4 Circuits |
| Display Specifications | 7 Inches |
| Overall Machine Output Power | ≤ 3KW |
| Single Output Power | ≤ 750W |
| Maximum Current of Each Warehouse | 15A |
| Standby Power | ≤40W |
| Charging Energy | ≥93% |
| Input Voltage Range | Single phase AC 220V±20% |
| Voltage Frequency | 50Hz ±1Hz |
| Battery Compatibility | Lithium battery (with 485 communication) |
| Payment Methods | APP/IC Card |
| Protection Level | IP53/IP54 |
These battery swapping cabinets are ideal for urban transportation networks, particularly in high-traffic areas such as transportation hubs, commercial centers, and residential districts where electric vehicles are primary transportation methods.
