OEM IP54 Waterproof Smart Battery Swap Cabinet Station For Electric Tricycles 9KW

Brand Name:	GT
Model Number:	B03
MOQ:	1-50 sets
Price:	910-1500 usd/set
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability:	3000/month

Detail Information

Product Description

Detail Information

Place of Origin:

Guangdong, China

Specification:

L1110*W670*H1652mm

Warehouse Size:

L252*W230*H420mm

Display Specifications:

7 Inches

Overall Machine Output Power:

≤9KW

Single Output Power:

≤750W

Maximum Current Of Each Warehouse:

10A

Input Voltage Range:

Single Phase AC 220V±20%

Packaging Details:

Fumigation-Free Wooden Box

Supply Ability:

3000/month

Highlight:

IP54 waterproof battery swap cabinet

9KW battery swap cabinet

OEM battery swapping station

Product Description

Intelligent Battery Swapping Cabinet for Electric Motorcycle - 9KW High Power Source

The power swap cabinet is a specialized system designed for electric low-speed vehicles including electric tricycles, motorcycles, and low-speed four-wheelers. This innovative solution enables users to quickly exchange depleted batteries for fully charged ones, eliminating lengthy charging wait times.

Key Specifications

Specification	Details
Dimensions	L1110 * W670 * H1652mm
Warehouse Size	L252 * W230 * H420mm
Charging Circuits	12 Circuits
Display	7 Inches
Output Power	≤ 9KW
Single Output Power	≤ 750W
Maximum Current	10A per Warehouse
Standby Power	≤50W
Charging Efficiency	≥93%
Input Voltage	Single phase AC 220V ±20%
Voltage Frequency	50Hz ±1Hz
Battery Compatibility	Lithium battery (with 485 communication)
Payment Methods	APP/IC Card
Protection Level	IP53/IP54

Advanced Features

Rapid Battery Exchange: Enables quick battery swaps, significantly reducing user wait times
Smart Management System: Monitors battery status including charge level and health, ensuring safe charging and automatic battery distribution
Enhanced Safety: Multiple protection mechanisms prevent overcharging, short circuits, and ensure operational safety
User-Friendly Interface: Touchscreen display and mobile app provide intuitive operation
Energy Efficient: Reduces power waste while extending battery lifespan
Eco-Friendly Solution: Zero-emission operation with significantly lower per-kilometer costs than fuel-powered alternatives

Ideal Applications

These battery swapping cabinets are ideal for urban transportation networks, particularly in high-traffic areas such as transportation hubs, business districts, and residential communities. They provide convenient access for users who rely on electric vehicles as their primary mode of transportation.

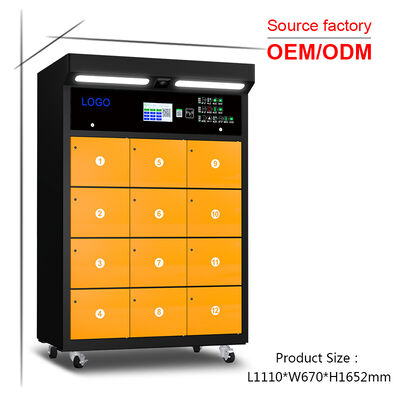

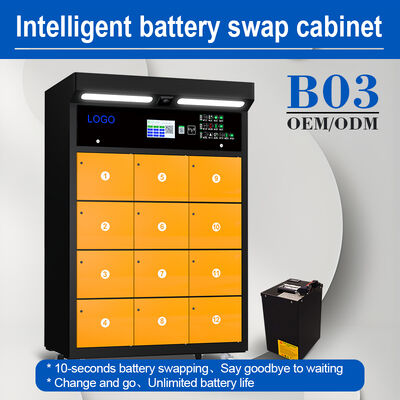

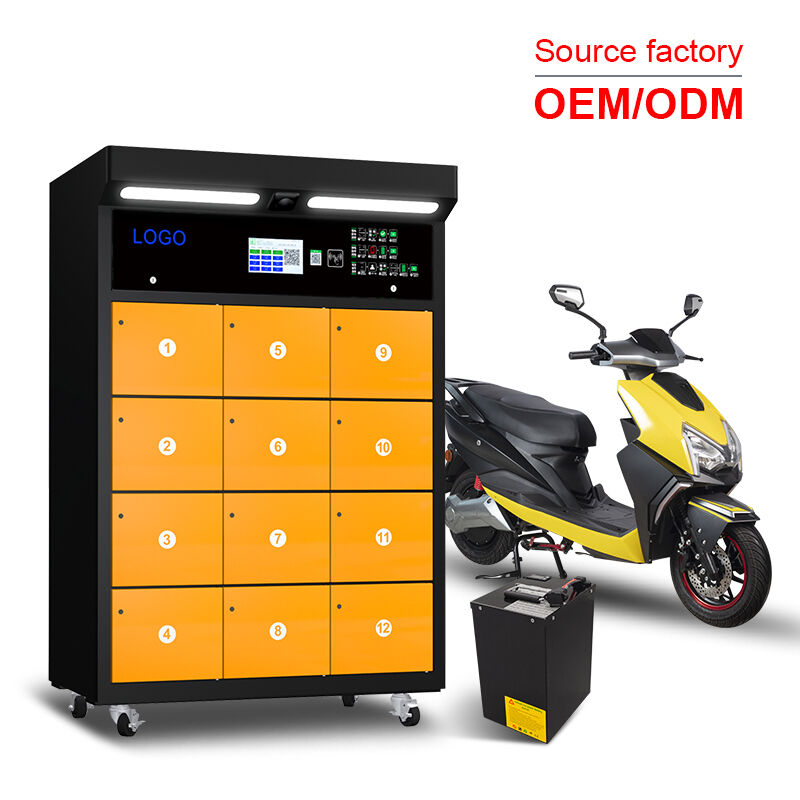

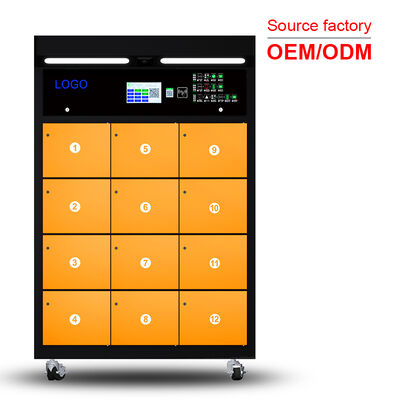

Product Images
