Battery Swapping Cabinet
>
automatic Electric Car EV Battery Swapping Stations 220V 50Hz

automatic Electric Car EV Battery Swapping Stations 220V 50Hz

Brand Name: GT
Model Number: B02
MOQ: 1-50 sets
Price: 820-1650 usd/set
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 10000/month
Detail Information
Place of Origin:
Guangdong, China
Specification:
L1110*W670*H1888mm
Number Of Charging Circuits:
12 Circuits
Overall Machine Output Power:
≤ 9KW
Single Output Power:
≤ 750W
Standby Power:
≤50W
Input Voltage Range:
Single Phase AC 220V Earth 20%
Packaging Details:
Fumigation-Free Wooden Box
Supply Ability:
10000/month
Highlight:

50Hz ev battery swapping stations

,

220V ev battery swapping stations

,

220V electric car battery change station

Product Description
New Energy Battery Swapping Cabinet for Electric Motorcycle High Power 12 Warehouse
Product Specifications
Attribute Value
Specification L1110*W670*H1888mm
Number of Charging Circuits 12 Circuits
Overall Machine Output Power ≤ 9KW
Single Output Power ≤ 750W
Standby Power ≤50W
Input Voltage Range Single phase AC 220V Earth 20%
The power swap cabinet is a power swap system specially designed for electric low-speed vehicles (such as electric tricycles, electric motorcycles, electric low-speed four-wheelers, etc.). The system allows users to quickly replace a depleted battery with a fully charged one without having to wait for a lengthy charging process.
Detailed Parameters
Specification L1110*W670*H1888mm
Warehouse size Customizable
Number of Charging Circuits 12 Circuits
Display Specifications 21 Inches
Overall Machine Output Power ≤ 9KW
Single Output Power ≤ 750W
Maximum Current of Each Warehouse 10A
Charging Energy ≥93%
Voltage Frequency 50Hz 1Hz
Adapt to The Battery Lithium battery (with 485 communication)
Payment Methods APP/IC Card
Protection Level IP53/IP54
Key Features
  • Quick battery replacement: Designed to achieve quick battery replacement, greatly shortening the user's waiting time.
  • Intelligent management: Built-in intelligent management system can monitor the status of each battery, including remaining power, health status, etc., ensure charging safety, and automatically sort and distribute batteries.
  • Safe and reliable: Multiple safety mechanisms are adopted to ensure the safety of personnel and equipment during battery replacement and prevent overcharge, short circuit and other problems.
  • Easy to operate: Usually equipped with a touch screen or mobile phone application to guide users to simple and intuitive operations.
  • Energy saving and environmental protection: Helps reduce power waste and extends battery life while achieving zero emissions.
  • Network connection: Supports networking function for remote monitoring and management of each battery swap station.
Application Scenarios
Power swapping cabinets are widely used in urban transportation, especially for urban residents who rely on electric vehicles as their main means of transportation. They are typically installed in high-traffic areas such as transportation hubs, business centers, and residential areas for convenient access.

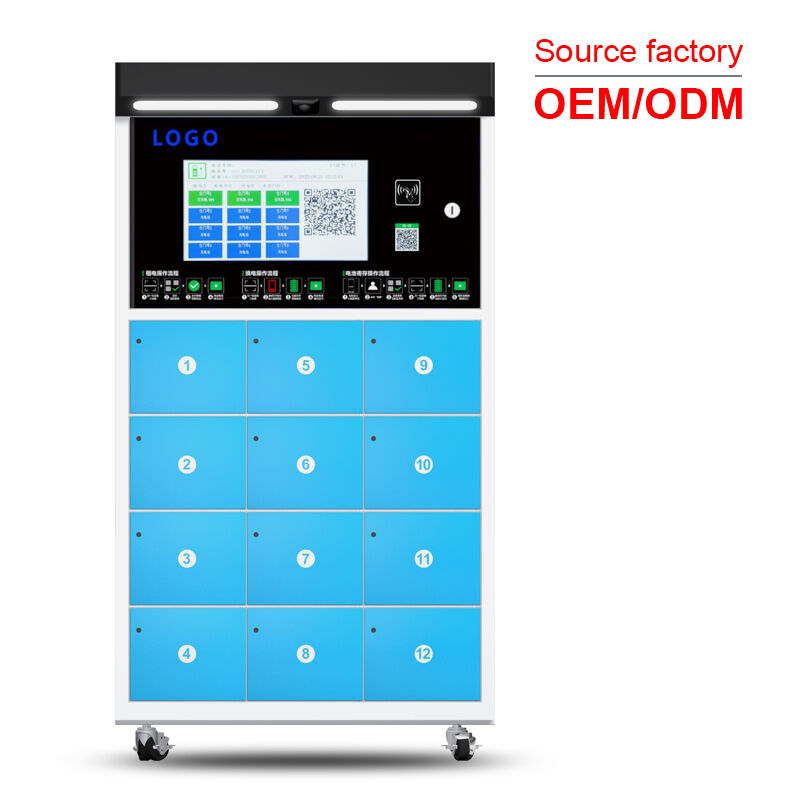

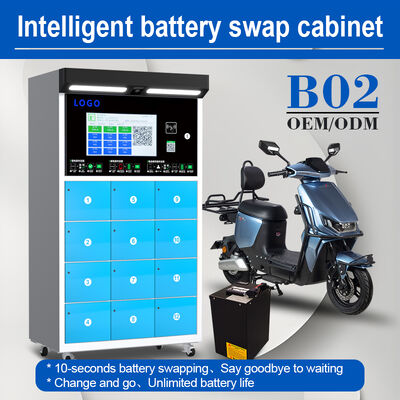

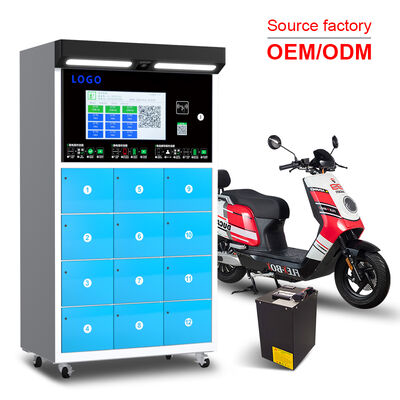

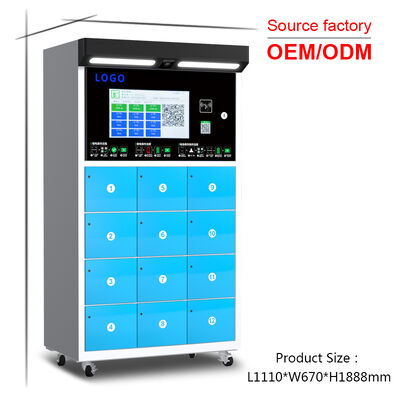

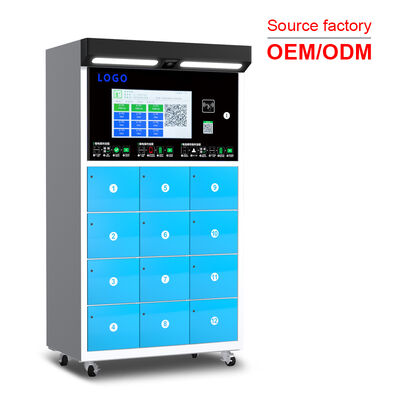

Product Images
