| Brand Name: | GT |
| Model Number: | C03 |
| MOQ: | 1-50 sets |
| Price: | 910-1150usd/set |
| Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
| Supply Ability: | 10000/month |

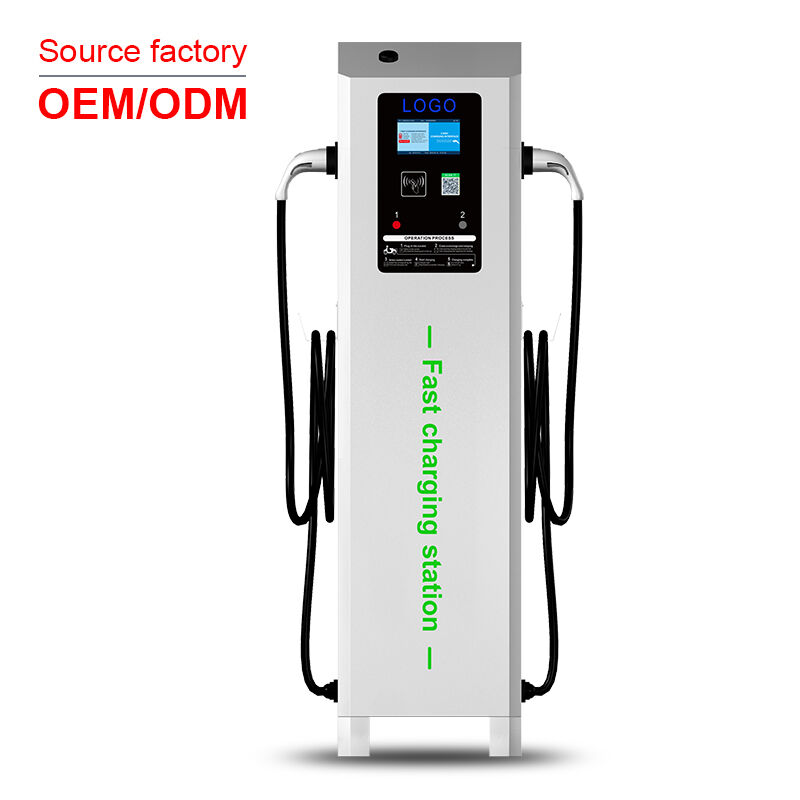

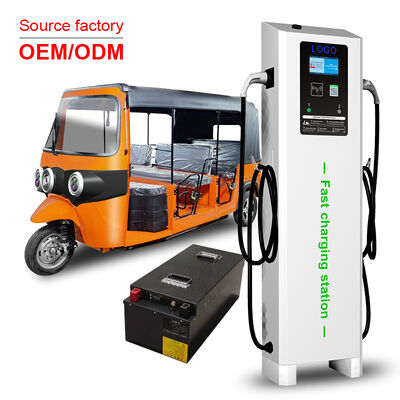

This high-performance charging station is specifically engineered for electric low-speed vehicles including electric tricycles, motorcycles, and low-speed four-wheelers. The dual-channel 11KW fast charging solution delivers efficient power delivery with advanced safety features.
| Parameter | Value |
|---|---|
| Number of output channels | Dual Connector (11KW) |
| Input voltage range | Three Phase AC 380V |
| Input voltage frequency | 50HZ ±1HZ |
| Total output power | 22KW |
| Single output power | 11KW |
| Output voltage range (DC) | 30V-100V |
| Single maximum output current range | 130A-260A |
| Battery BMS communication | CAN/RS485 |
| Operation method | Scan Code/Card Swipe |
| Communication method | 4G |
| Display | 7-inch Industrial Touch Screen |
| Cooling system | Temperature Controlled Air Cooling |
| Protection features | Overload, Overvoltage, Undervoltage, Overcurrent, Leakage, Water Immersion, Lightning Protection |
| Construction | Thickened Cold-rolled Steel Plate with Electrostatic Spraying |
| Protection level | Dustproof And Waterproof IP53/IP54 |
| Charging port standard | GB/T 20234.2-2015 |
