Custom 4 Slot Battery Swapping Cabinet Change Station For Electric 3/4 Wheeler Car

MOQ:	1
Price:	730

Detail Information

Product Description

Detail Information

Model NO.:

BC004-1

Overall Machine Output Power:

≤4kw

Single Output Power:

≤800W

Maximum Current Of Each Charging Compart:

15A

Standby Power:

≤50W

Input Voltage Range:

176V-264V

Voltage Frequencyl:

50Hz/60Hz

Charging Energy Efficiency:

≥93%

Adapt To The Battery:

Can Or 485 Communication Lithium Battery

Heat Dissipation Method:

Thermostatic Fan Cooling/Industrial Air Conditione

Customer Use And Payment:

APP/IC Car

Network Connection Method:

4G/WiFi

Protection Level:

IP54

Material And Appearance Craftsmanship:

Thickened Galvanized Steel Plate Electrostatic Pow

Transport Package:

Fumigation-Free Wooden Box

Specification:

1340*600*1747mm

Trademark:

Hupp Green Energy(HP Green Energy)

Origin:

China

HS Code:

8537109090

Production Capacity:

10000

Highlight:

4 Slot Battery Swapping Cabinet

4 Wheeler Battery Swapping Cabinet

Custom electric car battery change station

Product Description

Custom 4-Slot Battery Swap Cabinet for Electric 2/3/4-Wheelers

The power swap cabinet is a specialized system designed for electric low-speed vehicles (including electric tricycles, motorcycles, and low-speed four-wheelers). This system enables users to quickly exchange depleted batteries for fully charged ones, eliminating lengthy charging waits.

Product Specifications

Product Model	HP-HD06	HP-HP08	HP-HP10	HP-HP12
Number of Charging Roads	6 PCS	8 PCS	10 PCS	12 PCS
Display Screen	7/10/21-inch industrial touch screen
Equipment Size	8506701785mm	8206001666mm	8206001786mm	113406001747mm
Battery Compartment Size	250230410mm
Total Output Power	≤4800W	≤6400W	≤8000W	≤9600W
Single-Way Output Power	≤800W
Charging Power (Other)	1000W/1200W/1400W

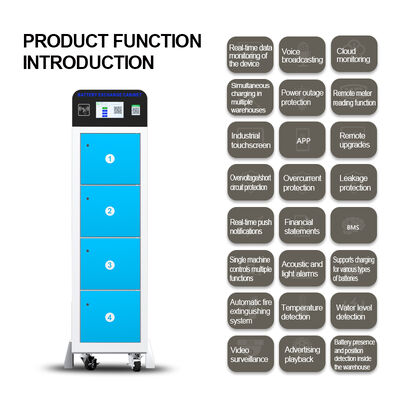

Key Features

Quick Battery Replacement: Designed for rapid battery swaps, significantly reducing user wait times
Intelligent Management: Built-in system monitors battery status (charge level, health) and ensures safe charging with automatic sorting/distribution
Safety Mechanisms: Multiple protections against overcharge, short circuits, and other hazards during battery exchange
User-Friendly Operation: Touchscreen interface and mobile app support for intuitive control
Energy Efficiency: Reduces power waste during charging while extending battery lifespan
Network Connectivity: Remote monitoring and management capabilities for battery swap stations
Eco-Friendly: Zero-emission solution with lower operating costs than fuel-powered alternatives

Application Scenarios

These battery swap cabinets are ideal for urban transportation networks, particularly in high-traffic areas like transportation hubs, business districts, and residential communities where electric vehicles are prevalent.

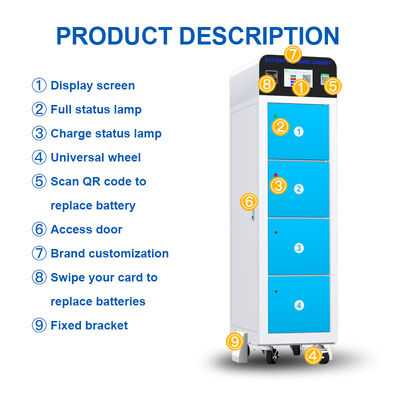

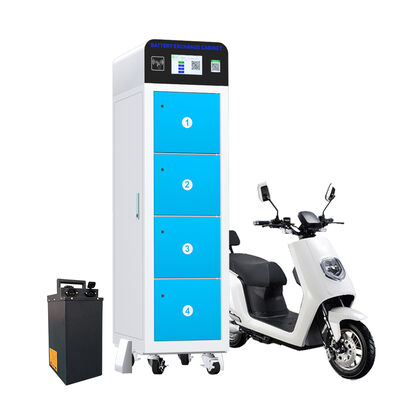

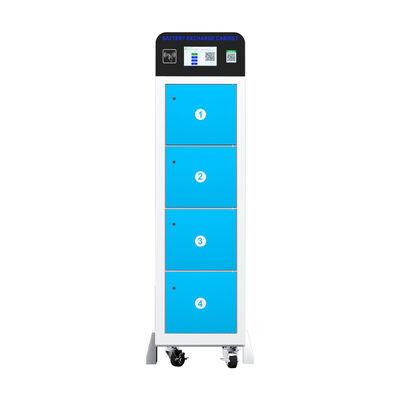

Product Images
