Solar Electric Car Battery Swap Motorcycle Tricycle Charging Station 48V250A

MOQ:	1
Price:	5500
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram

Detail Information

Product Description

Detail Information

Model NO.:

OEM-DZ

Battery Exchange Cabinet:

≤12 *800W(9.6kw)

Charging Pile Output Power:

≤8kw

Energy Storage Cabinet Output Power:

48V250A

Inverter Output Power:

12kw

Input Voltage Range:

220V

Voltage Frequencyl:

50Hz/60Hz

Photovoltaic Panel Size:

2384X1303X33mm

Adapt To The Battery:

Can Or 485 Communication Lithium Battery

Heat Dissipation Method:

Thermostatic Fan Cooling/Industrial Air Conditione

Customer Use And Payment:

APP/IC Car

Network Connection Method:

4G/WiFi

Protection Level:

IP54

Material And Appearance Craftsmanship:

Thickened Galvanized Steel Plate Electrostatic Pow

Transport Package:

Fumigation-Free Wooden Box

Specification:

7200*7850

Trademark:

Hupp Green Energy(HP Green Energy)

Origin:

China

HS Code:

8537109090

Production Capacity:

10000

Highlight:

battery swap motorcycle Station

48V250A battery swap motorcycle

48V electric car battery change station

Product Description

Type	Photovoltaic power plant parameters				other
Product model	HP-GD30KW	HP-GD50KW	HP-GD80KW	HP-GD100KW	For more parameters or customizationrequirements, please contact customer service
Type	Main parameters
Total output power	12KW	12KW	24KW	24KW
average daily power generation	>30KW	>50KW	>80KW	>100KW
Photovoltaic power station scale	4600*9200mm	7200*7850mm	9600*9200mm	9600*12000mm
Store power	28KW	>45KW	>75KW	>95KW
Output voltage range	220V	220V	220V	220V
Heat dissipation method of energy storage cabinet	Temperature controlled air cooling/Industrial air conditioner
Type	Battery exchange cabinet parameters				other
Product model	HP-HP06	HP-HP08	HP-HP10	HP-HP12	For more parameters or customizationrequirements, please contact customer service
Type	Main parameters
Number of charging roads	6 PCS	8PCS	10PCS	12PCS
display screen	7/10/21-inch industrial touch screen
Equipment size	8506701785mm	8206001666mm	8206001786mm	113406001747mm
Battery compartment size	250230410mm	250230410mm	250230410mm	250230410mm
Total output power	≤4800W	≤6400W	≤8000W	≤9600W
Single-way output power	≤800W	≤800W	≤800W	≤800W
Charging power (other)	1000W/1200W/1400W

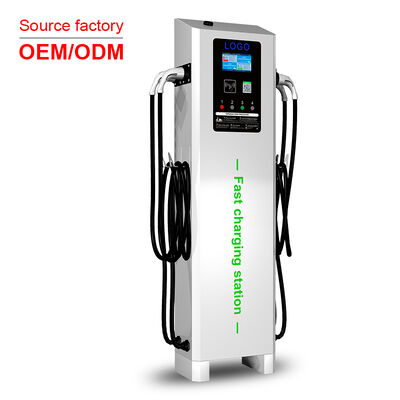

Type	Charging pile parameters				other
Product model	HP-CZ14	HP-CZ24	HP-CZ34	HP-CZ28	For more parameters or customizationrequirements, please contact customer service
Type	Main parameters
Number of charging roads	1PCS	2PCS	4PCS	2PCS
display screen	7-inch industrial touch screen
Single-way output power	50A	50A	50A	100A
Total output power	≤4000W	≤16KW	≤16KW	≤16KW
Single-way output power	≤4KW	≤4KW	≤4KW	≤8KW
Charging power (other)	11KW/22KW/6.6KW

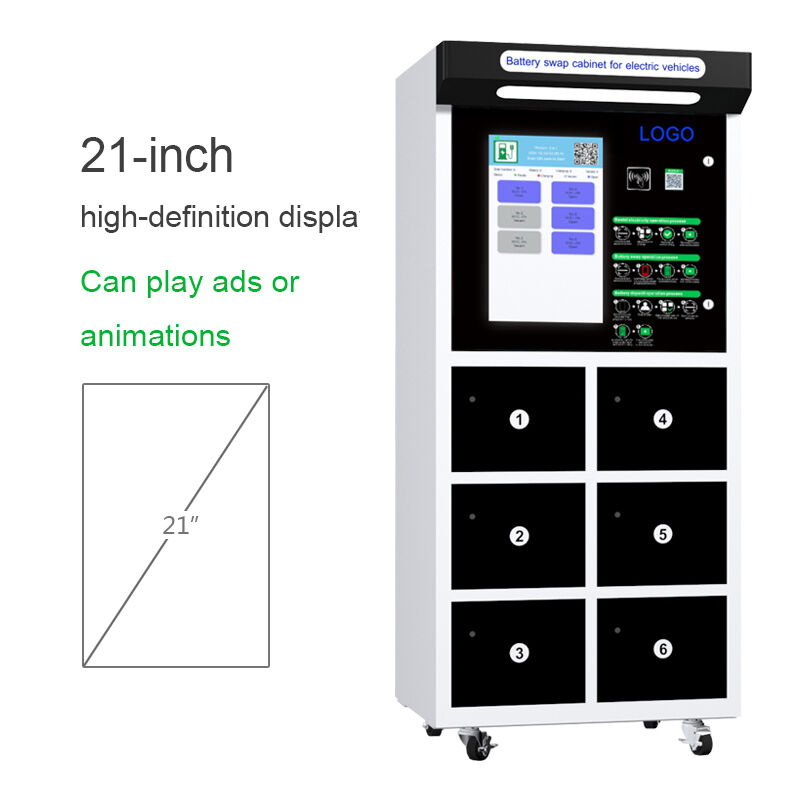

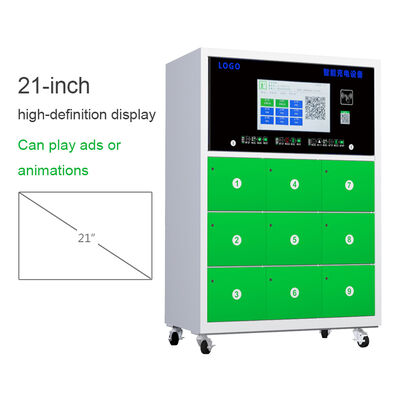

The power swap cabinet is a power swap system specially designed for electric low-speed vehicles (such as electric tricycles, electric motorcycles, electric low-speed four-wheelers, etc.). The system allows users to quickly replace a depleted battery with a fully charged one without having to wait for a lengthy charging process.

feature
Quick battery replacement: Designed to achieve quick battery replacement, greatly shortening the user's waiting time.
Intelligent management: Built-in intelligent management system can monitor the status of each battery, including remaining power, health status, etc., ensure charging safety, and automatically sort and distribute batteries.
Safe and reliable: Multiple safety mechanisms are adopted to ensure the safety of personnel and equipment during battery replacement and prevent overcharge, short circuit and other problems.
Easy to operate: Usually equipped with a touch screen or mobile phone application to guide users to simple and intuitive operations.
Energy saving and environmental protection: Helps reduce the power waste caused by battery charging while extending battery life.
Network connection: Supports networking function, which can remotely monitor and manage the situation of each battery swap station.
Energy saving and environmental protection: Electric motorcycles use intelligent power swap cabinets, which not only achieve zero emissions and reduce environmental pollution, but also have far lower operating costs per kilometer than fuel motorcycles, significantly saving money for users.
Application scenarios

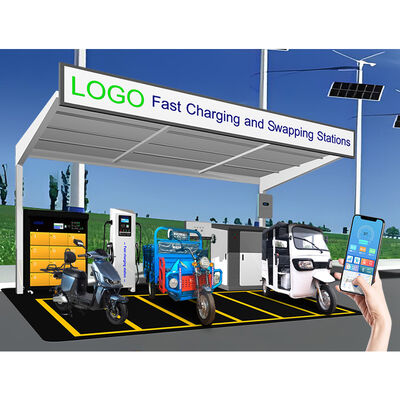

Power swapping cabinets are widely used in urban transportation, especially for urban residents who rely on electric vehicles as their main means of transportation. They are usually set up in places with high traffic volume such as transportation hubs, business centers, and residential areas, making it easy for users to find and use them at any time.
