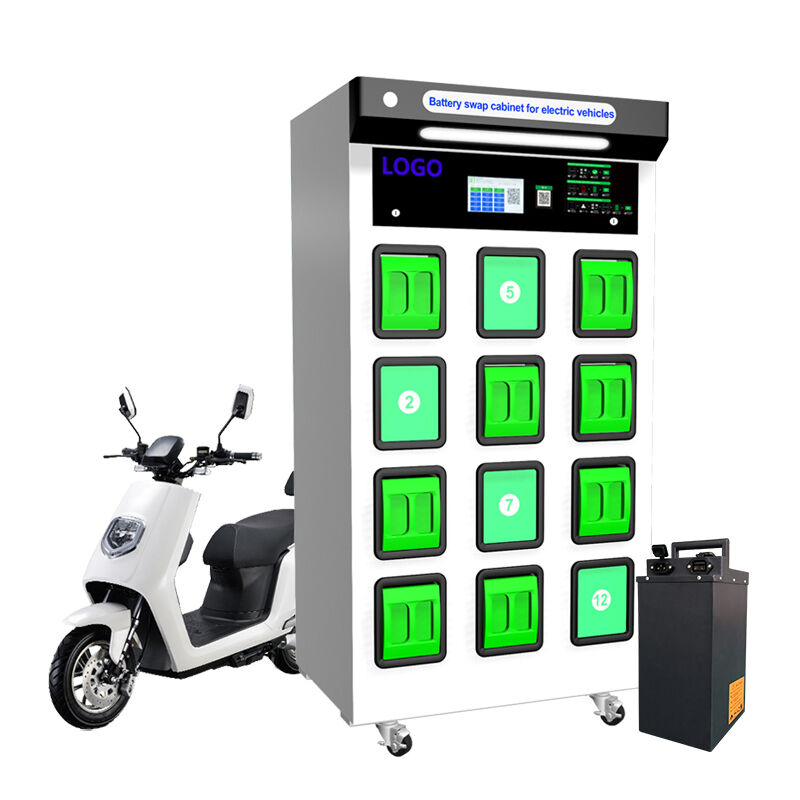

RS485 Swapping Electric Car Change Battery Station 4G WiFi 176V-264V

MOQ:	1
Price:	1700

Detail Information

Product Description

Detail Information

Model NO.:

YLJ-012

Overall Machine Output Power:

≤4kw

Single Output Power:

≤1000W

Maximum Current Of Each Charging Compart:

15A

Standby Power:

≤50W

Input Voltage Range:

176V-264V

Voltage Frequencyl:

50Hz/60Hz

Charging Energy Efficiency:

≥93%

Adapt To The Battery:

Can Or 485 Communication Lithium Battery

Heat Dissipation Method:

Thermostatic Fan Cooling/Industrial Air Conditione

Customer Use And Payment:

APP/IC Car

Network Connection Method:

4G/WiFi

Protection Level:

IP54

Material And Appearance Craftsmanship:

Thickened Galvanized Steel Plate Electrostatic Pow

Transport Package:

Fumigation-Free Wooden Box

Specification:

945*670*1710mm

Trademark:

Hupp Green Energy(HP Green Energy)

Origin:

China

HS Code:

8537109090

Production Capacity:

10000

Highlight:

RS485 electric car change battery station

176V electric car change battery station

264V battery swapping station

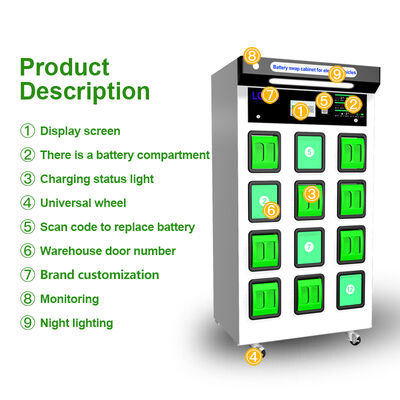

Product Description

Custom 12-slot Smart Urban Battery Swap Cabinet For 2/3/4-wheelers

The power swap cabinet is a power swap system specifically designed for electric low-speed vehicles (such as electric tricycles, electric motorcycles, and electric low-speed four-wheelers). The system allows users to quickly replace a depleted battery with a fully charged one without waiting for a lengthy charging process.

Product model	HP-HD06	HP-HP08	HP-HP10	HP-HP12
Number of charging roads	6 PCS	8 PCS	10 PCS	12 PCS
Display screen	7/10/21-inch industrial touch screen
Equipment size	8506701785mm	8206001666mm	8206001786mm	113406001747mm
Battery compartment size	250230410mm
Total output power	≤4800W	≤6400W	≤8000W	≤9600W
Single-way output power	≤800W
Charging power (other)	1000W/1200W/1400W

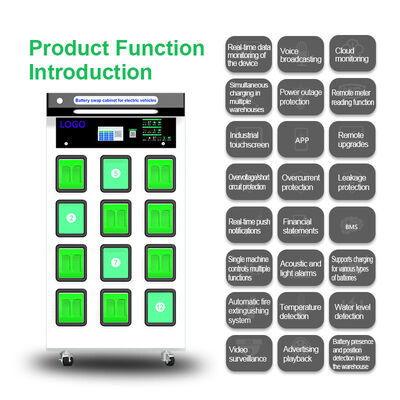

Key Features

Quick battery replacement: Designed to achieve quick battery replacement, greatly shortening the user's waiting time.
Intelligent management: Built-in intelligent management system can monitor the status of each battery, including remaining power, health status, etc., ensure charging safety, and automatically sort and distribute batteries.
Safe and reliable: Multiple safety mechanisms are adopted to ensure the safety of personnel and equipment during battery replacement and prevent overcharge, short circuit, and other problems.
Easy to operate: Usually equipped with a touch screen or mobile phone application to guide users to simple and intuitive operations.
Energy saving and environmental protection: Helps reduce the power waste caused by battery charging while extending battery life.
Network connection: Supports networking function, which can remotely monitor and manage the situation of each battery swap station.

Application Scenarios

Power swapping cabinets are widely used in urban transportation, especially for urban residents who rely on electric vehicles as their main means of transportation. They are usually set up in places with high traffic volume such as transportation hubs, business centers, and residential areas, making it easy for users to find and use them at any time.

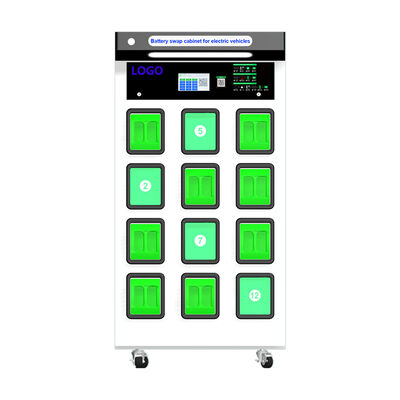

Product Images
