Battery Swapping Cabinet
>

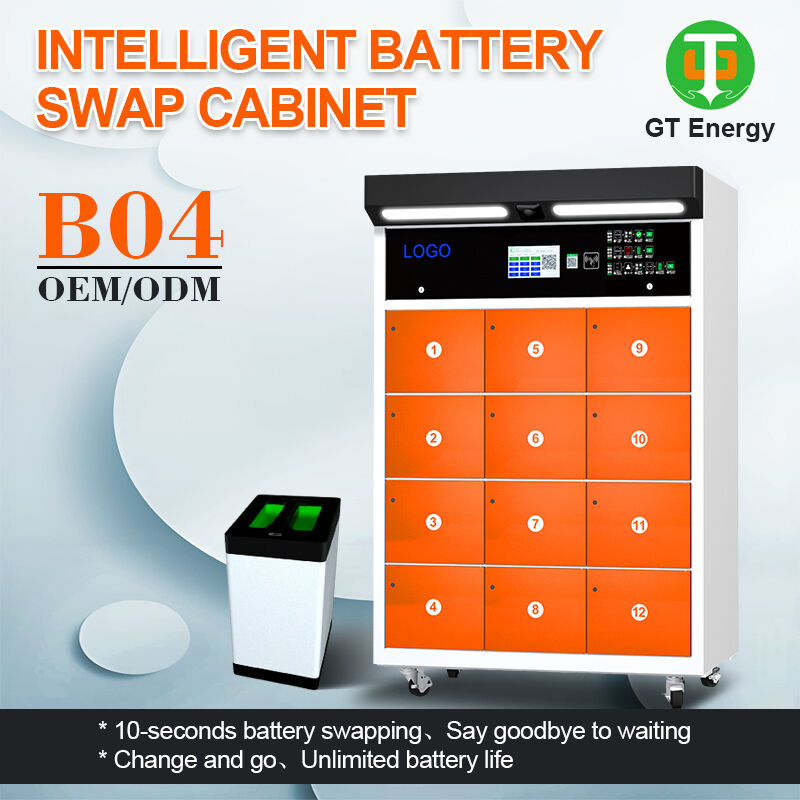

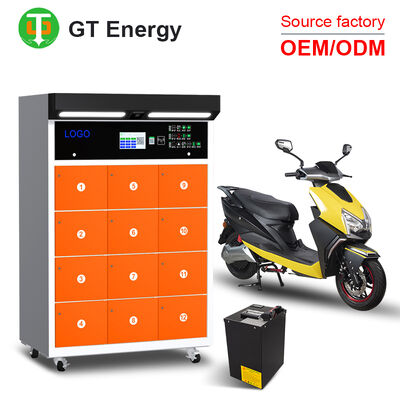

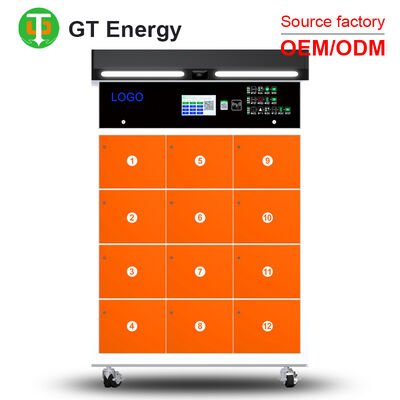

12-slot battery swapping station suitable for 220V electric motorcycles

12-slot battery swapping station suitable for 220V electric motorcycles

Brand Name: GT
Model Number: B04
MOQ: 1-50 sets
Price: 910-1610usd/set
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 3000/month
Detail Information
Place of Origin:
Guangdong, China
Specification:
L1170*W670*H1732mm
Warehouse Size:
L270*W250*H450mm
Number Of Charging Circuits:
12 Circuits
Overall Machine Output Power:
≤ 9.6KW
Single Output Power:
≤ 800W
Maximum Current Of Each Warehouse:
15A
Standby Power:
≤50W
Packaging Details:
Fumigation-Free Wooden Box
Supply Ability:
3000/month
Product Description
New Energy Battery Swapping Cabinet for Electric Motorcycle
The power swap cabinet is a power swap system specially designed for electric low-speed vehicles (such as electric tricycles, electric motorcycles, electric low-speed four-wheelers, etc.). The system allows users to quickly replace a depleted battery with a fully charged one without waiting for lengthy charging.
Product Specifications
Specification Details
Dimensions L1170 * W670 * H1732mm

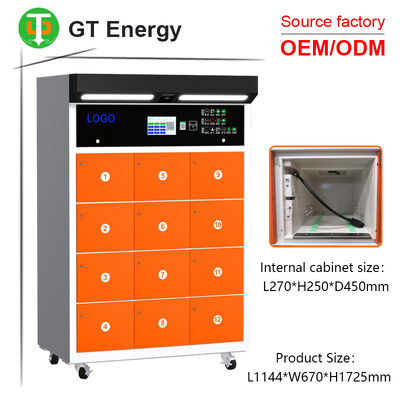

Warehouse Size L270 * W250 * H450mm
Number of Charging Circuits 12 Circuits
Display Specifications 7 Inches
Output Power ≤ 9.6KW (Overall), ≤ 800W (Single)
Maximum Current 15A per Warehouse
Standby Power ≤50W
Charging Efficiency ≥93%
Input Voltage Single phase AC 220V ±20%
Voltage Frequency 50Hz ±1Hz
Battery Compatibility Lithium battery (with 485 communication)
Payment Methods APP/IC Card
Protection Level IP53/IP54
"Get a full battery in just seconds — swap and go. Centralized charging for greater safety, no waiting, and zero range anxiety.
12-slot battery swapping station suitable for 220V electric motorcycles
Basic Functions12-slot battery swapping station suitable for 220V electric motorcycles

A business as stable as water and electricity bills – low customer acquisition costs, high customer retention rates, and sustainable revenue.

1. Various countries are enacting motorcycle bans to phase out gasoline-powered motorcycles and strongly encourage green travel. Governments are actively promoting centralized battery swapping models, and battery swapping stations, as a compliant, safe, and efficient energy replenishment solution, are more likely to receive policy support, subsidies, and municipal cooperation opportunities.

2. A large user base and high-frequency essential demand. Global annual sales are projected to grow to over 32.3 million units by 2035. This growth is primarily driven by national motorcycle bans, green travel policies, and the trend of electric vehicles replacing gasoline.

3. Quick return on investment and stable cash flow – the investment payback period is approximately 12 to 18 months. The subscription model provides predictable and continuous revenue.

4. Asset-light replication and strong network effects – initially open 5-10 sites, located in distribution centers, university towns, or densely populated apartment areas. Once established, the model can be rapidly replicated. The more sites a brand has, the more convenient it is for users, and the stronger its competitive advantage becomes.

12-slot battery swapping station suitable for 220V electric motorcycles

1. Urban On-Demand Delivery (Food Delivery/Courier Services): Swapping a depleted battery for a fully charged one takes just over ten seconds; this converts "charging time" into "order-taking time," significantly boosting income.

2. Personal Commuting (Consumer Two-Wheelers): Users rent batteries instead of purchasing them, utilizing swap stations for quick, on-the-go exchanges, thereby enabling a low-cost and highly safe daily commute.

3. Micro-mobility for Scenic Areas and Industrial Parks: Suitable for sightseeing vehicles in tourist attractions and shuttle buses within large industrial parks. This eliminates the need for vehicles to sit idle while charging, thereby improving operational turnover efficiency.

4. Light Logistics and Warehouse Transport: Ideal for forklifts and transport carts used in airports and logistics warehouses. Battery swap stations ensure 24-hour continuous equipment operation, maintaining the high efficiency of logistics sorting lines.

5. Emergency Response and Public Safety: Maintain sufficient battery levels for electric patrol vehicles and rescue equipment at the department's emergency response station, ensuring readiness for immediate deployment in emergency operations.

12-slot battery swapping station suitable for 220V electric motorcyclesThis platform integrates battery swapping management, car rental management, battery management, fast charging, and solar power station management, providing a single backend for managing all equipment and orders. It supports flexible billing models (monthly/per-trip/tiered pricing), is compatible with multiple car brands and battery models, and seamlessly connects to mainstream payment channels. It automatically generates carbon footprint reports to support green compliance and ESG goals. Real-time monitoring, intelligent alerts, and automatic reconciliation simplify operations. This is currently the most comprehensive, compatible, and user-friendly battery swapping and car rental management platform on the market.
12-slot battery swapping station suitable for 220V electric motorcyclesHigh-performance smart battery: intelligent management, remote monitoring, and a lifespan of 5-8 years.12-slot battery swapping station suitable for 220V electric motorcycles12-slot battery swapping station suitable for 220V electric motorcycles12-slot battery swapping station suitable for 220V electric motorcycles12-slot battery swapping station suitable for 220V electric motorcycles
